1.5KW Hydraulic Pump With There DIfferent Motive Power Motor Gasoline Diesel
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Hydraulicl Pump
3.Working pressure: 80Mpa
4.Max compression force: 100Mpa
5.Flow: 1.6L/min
6.Rated input power: 1.5KW
7.Hydraulic oil: 32#
8.Gasoline volume: 8L
9. Boyu Brand
Description:
Application of Yamaha/HONDA Hydraulic Pump to provide power for the cutting tool, the hydraulic compressor, punching machine and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.
1. Easy to operate and high safety
2.Precise Machining Technique
3. Long Life of the Machine
4.Delicate and Beautiful Appearance Design
5. Broader Applicable Scope
6.Good quality and less malfunction
Specification:
|
Model
|
motive power
|
Max compression force
|
Flow
|
oil reserve
|
power
|
Weight
|
Dimension(mm)
|
|
YB100-G1
|
Gasoline
|
100Mpa
|
1.6L/min
|
8L
|
4HP
|
85kg
|
600*420*510
|
|

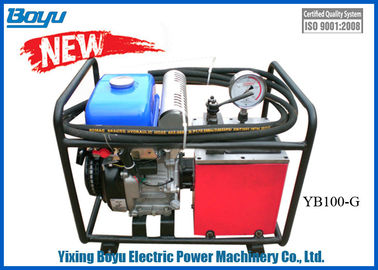

YB100-G2
|
Gasoline
|
100Mpa
|
1.6L/min
|
8L
|
5.5HP
|
80kg
|
600*420*510
|
|
YB100-D
|
Diesel
|
100Mpa
|
1.6L/min
|
8L
|
4HP
|
100kg
|
600*430*520
|
|

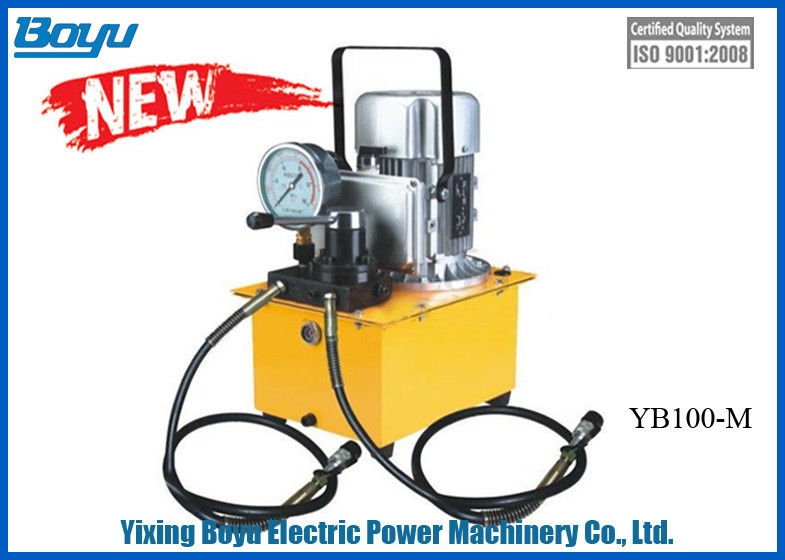

YB100-M
|
Motor
|
100Mpa
|
1.6L/min
|
8L
|
1.5KW
|
90kg
|
750*400*580
|
More pictures:
Maufacturer Introduction:
Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are at the east of China, near Shanghai seaport, Nanjin airport, Hangzhou airport, about 2~3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
- Line Stringing Equipment and accessories and tools.
- Nonmetallic galvanized the production equipment (Achieved high-tech products)
- Numerical control machine
- Low voltage no power-arc furnace compensation system.
We produce 40~60sets of stringing equipment each month and all kinds of accessories.
