BW 600 Piston Mud Pump Horizontal Triplex Reciprocating Double Acting Piston Pump

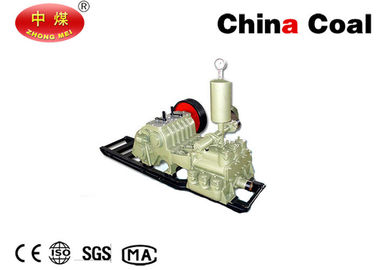

Large Image : BW 600 Piston Mud Pump Horizontal Triplex Reciprocating Double Acting Piston Pump

Product Details:

Place of Origin:	China Shandong
Brand Name:	China Coal
Certification:	CE, SGS, TUV, BV, ISO, MA
Model Number:	BW-600

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	Standard Export Packaging
Delivery Time:	Shipped in three days after payment
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	5000

Contact Now

Detailed Product Description

Model:	BW-600	Type:	Horizontal Triplex Reciprocating Double-acting Piston Pump
Stroke (mm):	100	Bore (mm):	100
Volumetric efficiency(%):	83	Overall efficiency(%):	70
Power of dynamic force(kw):	30	V-belt pulley size (mm):	(B×5)410
Suction head (M):	2.5	Discharge hose diameter (mm):	R4
Lnput hose diameter (mm):	R3	SIZE(mm):	2100×995×650
Mass(kg):	700
Highlight:	pump equipment

BW 600 Piston Mud Pump Horizontal Triplex Reciprocating Double Acting Piston Pump

BW-600 Piston mud pump, Piston mud pump, mud pump

Product Introduction
The main purpose and structural characteristics:
BW-600 mud pump is a horizontal double-acting reciprocating triplex piston pump, the main hydrological well drilling rigs and 100 meters automotive drilling rig. Perfusion grout can also be used as the foundation treatment injection pump use. The pump has three flow and three pressure. Compared with the same specifications pump has a smooth, wide range of media, traffic, wide flow range, high output pressure, longer consumable life and stable performance characteristics.

Technical Parameter

BW 600 Piston Mud Pump Horizontal Triplex Reciprocating Double Acting Piston Pump
Model number	BW-600
Type	Horizontal triplex reciprocating double-acting piston pump
Stroke (mm)	100
Bore (mm)	100			80
Pump speed (r/min)	148	90	62	148	90		62
Outputvolume (L/min)	600	350	250	380	230		160
Discharge pressure (MPa)	1.3	2.2	3.1	2.0	3.5		5.0
Volumetric efficiency(%)	83
Overall efficiency(%)	70
Power of dynamic force(kw)	30
V-belt pulley size (mm)	(B×5)410
lnput speed (r/min)	500					520
suction head (M)	2.5
Discharge hose diameter (mm)	R4
Lnput hose diameter (mm)	R3
SIZE(mm)	2100×995×650
(kg)Mass	700

Feature Photo
