electric hydraulic pump

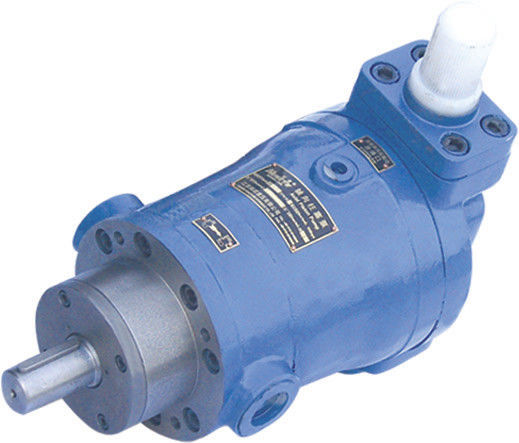

Constant Power Control Axial Piston Pump , 80 cc Displacement CY Series

Quick details

Constant Power Control Axial Piston Pump CY Series

 Rated pressure 315 bar

Peak pressure 400bar

displacement is 80 cc

Keyed shaft,  single pump

It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft,  single pump.

Specifications:

Applications:

Hydraulic system. Boats Hydraulic system. Pressure Machine, Cut machine, Package Machine

Advantage:

Good quality, Competitive price and quick delivery.

Low noise, Small Volume

Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
