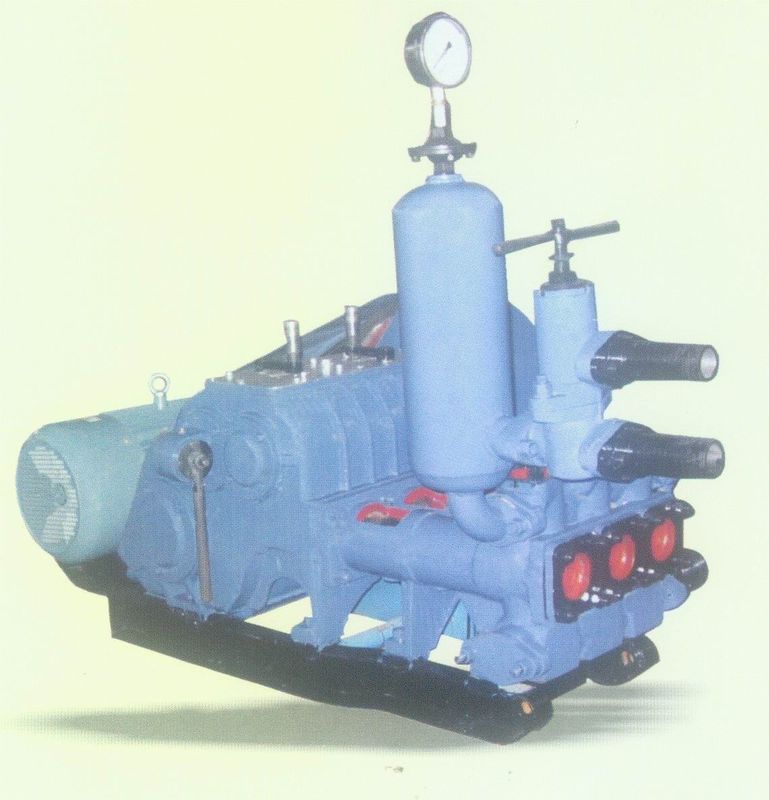

BW-250 Diamond Drilling Mud Pump Large Output Volume With High Pressure

Quick Detail:



1. BW-250 mud pump diameter cylinder liner-Φ80mm and Φ65mm.

2. This mud pump needs small driving power. It has large output volume and high pressure.

3. This mud pump is a main device in geological survey.

Description:

1.BW250 mud pump is a horizontal two-cylinder reciprocating pump.
2. This piston pump has smaller volume and lighter weight than similar pumps. It is more suitable for geological prospecting.
3.To meet diamond drilling, BW-250 mud pump has two kinds of cylinder liner Ф80mm and Ф65mm.The large cylinder diameter (Ф80mm) can match 1000m drilling machine. The smaller cylinder (Ф65mm) can be used as associated equipment for 1500m drilling machine.

Specifications:


Applications:

1.It is applicable to geological exploration and engineering, exploration with the hole depth less than 1000 m.

2.It is also used in seismic blast hole drilling and bedrock drilling with engineering drilling rig in railway, water, metallurgy, construction, geology and other industries.

 Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
