High Speed Rotary High Pressure Hydraulic Piston Pumps Small Volume A10VSO 71

Large Image : High Speed Rotary High Pressure Hydraulic Piston Pumps Small Volume A10VSO 71

Product Details:

Place of Origin:	CHINA
Brand Name:	LITOP
Certification:	ISO9001-2000
Model Number:	A10VSO18/28/45/71/100/140

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	OEM / NETURAL
Delivery Time:	3-5 DAYS
Payment Terms:	T/T,WEST UNION,PAYPAL
Supply Ability:	80000 PCS / MONTH

Contact Now

Detailed Product Description

Highlight:	variable displacement hydraulic pump

High Speed Rotary High Pressure Hydraulic Piston Pumps Small Volume A10VSO 71

Detailed Product Description

Quick details

Hydraulic Piston Pumps

Clockwise Rotation

Perbunan seal

Splined shaft

for Hydraulic system. Ship Hydraulic system

High Pressure Hydraulic System Hydraulic Piston Pumps

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump

Specifications:

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60

Applications:

Hydraulic system. Ship Hydraulic system.

Advantage:

Good quality, Competitive price and quick delivery.

Low noise, Small Volume

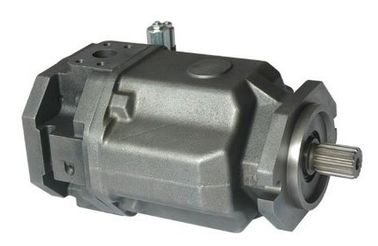

High Speed Rotary High Pressure Hydraulic Piston Pumps Small Volume A10VSO 71 0

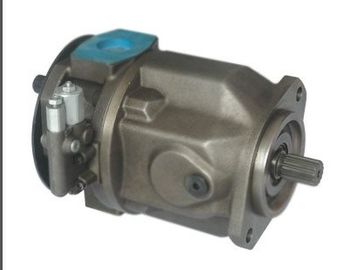

High Speed Rotary High Pressure Hydraulic Piston Pumps Small Volume A10VSO 71 1

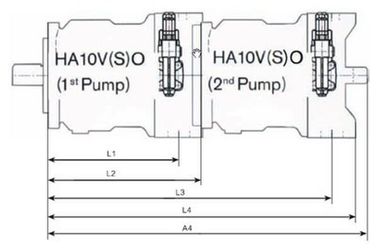

High Speed Rotary High Pressure Hydraulic Piston Pumps Small Volume A10VSO 71 2

Displacement	Mounting Flange A(B) ISO(4)-hole					Mounting Flange C(D) SAE 2 (4) –hole					A4	A5	A6
Displacement	A1	A3	B2	B10	L(L1)	A1	A3	B2	B10	L(L1)	A4	A5	A6
18	80h8	109	7	11	M16×1.5	82.55h8	106.4	6.3	11	9/16-18UNF	134	25	20
28	100h8	140	9	14	M18×1.5	101.6h8	146	9.5	φ14	3/4-16 UNF	174	32	20
45	100h8	140	9	14	M22×1.5	101.6h8	146	9.5	φ14	7/8-14 UNF	174	40	25
71	125h8	180	9	18	M22×1.5	127h8	181	12.7	φ18	7/8-14 UNF	210	50	25
100	125h8	180	9	17.5	M27×2	127h8	181	12.7	17.5	11/16-12 UNF	210	60	32
140	180h8	158.4×158.4	9	φ18	M27×2	152.4h8	161.6×161.6	12.7	φ20	11/16-12 UNF	200×200	63	32

OIL PORT TYPE Dimension

Displacement	PORTS AT OPPOSITE SIDES						PORTS AT REAR						(UNC)
Displacement	B1	B8	B9	B18	B19	B20	B1	B8	B9	B18	B19	B20	A7	A8
18	195	145	63	109	40	130							M10(3/8-16UNC)	M10(3/8-16UNC)
28	206	164	80	119	40	140	225	170	45	73	43	209	M10(7/16-14UNC)	M10(3/8-16UNC)
45	224	184	90	129	40	155	244	189	50	81.5	40	228	M12(1/2-13UNC)	M10(3/8-16UNC)
71	259	217	104	143	40	183	278	223	58	91.5	40	262	M12(1/2-13UNC)	M10(3/8-16UNC)
100	329	275	100	148	40	250	344	288	55	99	40	327	M12(1/2-13UNC)	M14(1/2-13UNC)
140	337.5	275	110	183	27	222	379	293	60	140	27	353	M12(1/2-13UNC)	M14(1/2-13UNC)

Universal size

CC	B4	B5	B6	B11	B12	B13	B14	B15	B16	B17	X	B	S
18	43	83	11.5	67	66	152	26.2	52.4	22.2	47.6	7/16-20UNF	3/4"	1"
28	40	90	13	74	75	164	30.2	58.7	22.2	47.6	7/16-20UNF	3/4"	11/4"
45	45	96	13	83	81	184	35.7	69.9	26.2	52.4	7/16-20UNF	1"	11/2"
71	53	115	17	98	92	210	42.9	77.8	30.2	58.7	7/16-20UNF	1"	2"
100	95	175	20	106	95	236	50.8	88.9	31.8	66.7	7/16-20UNF	11/4"	21/2"
140	78	173	21	118.5	108	262	50.8	88.9	31.8	66.7	M14×1.5	11/4"	21/2"

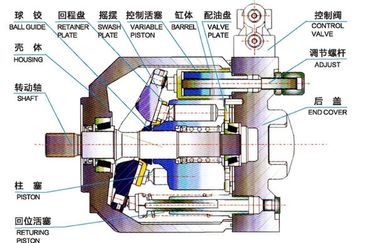

High Speed Rotary High Pressure Hydraulic Piston Pumps Small Volume A10VSO 71 3
