IP44 Centrifugal Self Priming Centrifugal Pump Stainless Steel Single Impeller Pumps

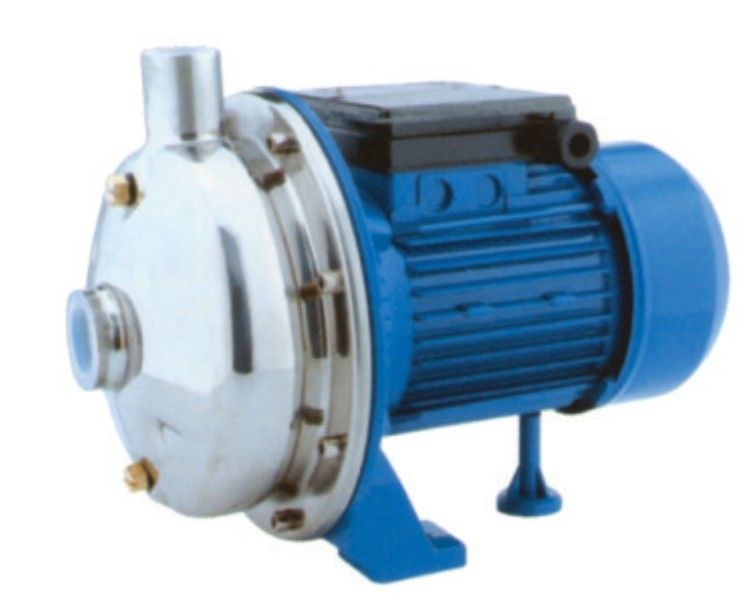

Large Image : IP44 Centrifugal Self Priming Centrifugal Pump Stainless Steel Single Impeller Pumps

Product Details:

Place of Origin:	China(mainland)
Brand Name:	SUNFINE
Model Number:	HCT
application:	water
Horse Power:	0.5
Impeller:	Brass
Power:	Electric
product name:	Self Priming Centrifugal Pump
Protection:	IP44

Contact Now

Detailed Product Description

Highlight:	Electric Water Pumps

IP44 Centrifugal Self Priming Centrifugal Pump Stainless Steel Single Impeller Pumps

Quick Detail:

1.Good quality and best service

2.Two-pole induction motor

3.Insulation Class B

4.Protection IP44

5.Standard Export Package

Description:

Centrifugal single impeller low head water pumps for flow irrigation systems with

high flow rate. Suitable to pump clean water or non-aggressive liquid charged with

small solid impurity. To be used in flow irrigation systems in gardening, agriculture

and industrial fittings

Operating Conditions:

Liquid temperature up to 60°C

Ambient temperature up to 40°C

Total Suction lift up to 9mt

Continuous duty

Motor:

Two-pole induction motor (n=2850r.p.m)

Insulation Class B

Protection IP44

Material:

Pump body: Cast iron

Motor support: Cast iron

Motor housing: Aluminum

Impeller: Brass

Shaft with rotor: 45# Steel, AISI 416 stainless steel if request

Mechanical seal: Carbon/Ceramic

Single phase 220V-240V/50Hz

Single phase 110V-127v/60Hz if request

Single/three phase 220V/60Hz if request

Specifications:

Model	Input Power		MAX. Flow L/Min	Max. Head Meter	Stator	Inlet/outlet (Inch)	Impeller	Cable (m)	Wire
Model	Kw	Hp	MAX. Flow L/Min	Max. Head Meter	Stator	Inlet/outlet (Inch)	Impeller	Cable (m)	Wire
HCT-18	0.37	0.5	140	18	5cmX11cm	1½X1"	ppo	1m+Eur plug	copper
HCT-18	0.37	0.5	140	18	5cmX11cm	1½X1"	Stainless	1m+Eur plug	copper
HCT-20	0.55	0.75	145	20	6cmX11cm	1½X1"	ppo	1m+Eur plug	copper
HCT-20	0.55	0.75	145	20	6cmX11cm	1½X1"	Stainless	1m+Eur plug	copper
HCT-26	0.75	1	150	26	7cmX11cm	1½X1"	ppo	1m+Eur plug	copper
HCT-26	0.75	1	150	26	7cmX11cm	1½X1"	Stainless	1m+Eur plug	copper
