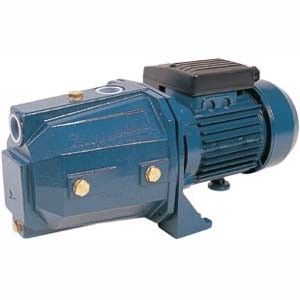

High Pressure Centrifugal Pump

JETLC Domestic High Pressure Electric Water Pumps from Well , Swimming Pool

Operating Limitation

Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar

Construction Features

Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45#steel /stainless steel
Impeller: brass/plastic
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon

Quick Detail:

• Brand Name: JINTAI water pumps
• Theory: Self-Priming Jet Pump
• Input Voltage (V): 220V,50Hz
• Input Power: 370w 550w 750w
• Pressure: High Pressure
• Origin of water pumps: made in China

Description:

The JETLC series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Pumps should be installed in a covered area, protected against the weather

Applications:

household and domestic applications

water supply from wells and pools, pressure boosting, garden sprinkling, washing booths

Specifications :

Competitive advantages:

1. Easy to mount.

2. Mechanical shaft seal

3. Easy installation and maintenance
