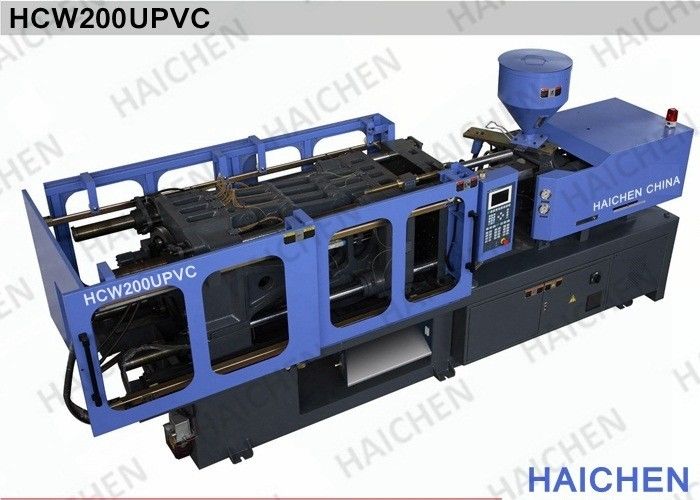

Hydraulic PVC  Injection Moulding Equipment With Multi Cavities Several language HCW200UPVC

Description:

HCW200UPVC injection molding machine is the type of fully automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Machine main components adopt world famous brand, e.g.:
• PLC: TECHMATION CONTROLLER(Taiwan)
• AC Contactor: SIEMENS(Germany)
• Travel switch: SCHNEIDER(FRANCE),
• Transducer: NOVOTK (Germany)
• Proportional Valve: HNC(TAIWAN)
• Oil pump: VICKERS(USA)
• Directional Valve: VICKERS(USA)
• High-pressure pipe line: GOOD YEAR (USA)

HYDRAULIC SYSTEM

-The double proportional compund value control system pressure and flow, high sensitivity and stability
-Adopt the imported pump, low noise, long lifetime,stabke performance
-The optional world-class servo hydraulic system, lower noise, energy-saving
-The precise feedback control of servo system to the pressure and flow, with higher sensitivity and more accurate repeatability precision
-High performance hydraulic valve, less failure, fast switch, convenient maintenance
-Low pressure mould protect system, which is more suitable for the precision mould
-Greese and lubricating oil in dependent lubrication system can lubricate everywhere in the best situation

Quick Detail:

Hydraulic Injection Molding Machine is composed of direction valve, proportional pressure valve, proportional direction valve, overfall valve, unilateral valve & pump, and hydraulic motor etc, these components compose the electric-hydraulic proportional loading feedback circuit, which is with fast respond, reliable running, stable action, energy saving, easy to operate, easy to maintain and other characteristics.

Competitive Advantage:

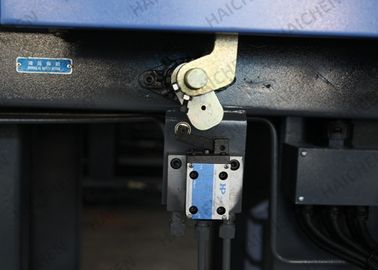

1. The machine equipped with hydraulic protection
2. The machine equipped with double Hydraulic pulling device
3. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
4. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
5. Heaters adopt ceramic, the using life is double than stainless steel.
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates



Applications:

General purpose Injection Molding Machine is for small&middle industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 10g-630g, mold cavity can be: 1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities
