OEM Different Displacement High Pressure Hydraulic Pump , Flow Control

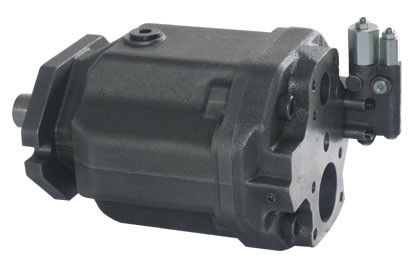

Large Image : OEM Different Displacement High Pressure Hydraulic Pump , Flow Control

Product Details:

Place of Origin:	China
Brand Name:	Hengyuan Hydraulic
Certification:	ISO9000
Model Number:	A10VSO18/28/45/71/100/140

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Highlight:	variable piston pump

OEM Different Displacement High Pressure Hydraulic Pump , Flow Control
Quick details
OEM Different Displacement High Pressure Hydraulic Pump
displacement 100cc/140cc
Pressure and Flow control
SAE 2 hole UNC inch thread
for Hydraulic system. Ship Hydraulic system

Features
1. Low noise level, high efficiency, high reliability and long service life.
2. Small volume, High power density.
3. Excellent oil absorbency.
4. Axial and radial loading of drive shaft possible.
5. SAE and ISO mounting flange.
6. Thru drive option for multi- circuit system.

Specifications:

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60

Applications:
Hydraulic system. Ship Hydraulic system.

suitable for hydraulic power transmission in Metal Forming Machine Tool, Construction
Machinery, PlasticMachinery and the field in Mining, Metallurgy, Shipbuilding,
Architectural machine,Water Product andConservancy so on.

Advantage:
Good quality, Competitive price and quick delivery.
Low noise, SmallVolume
Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
