drilling pump housing

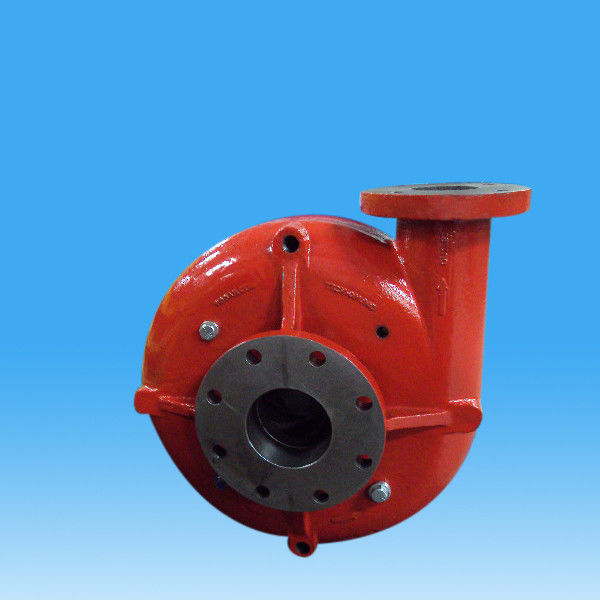

Oilfield Drilling Pump Housing
1)Ductile Cast Iron
2)Sand Casting and CNC Machining
3)Hydro-test
4)ISO9001:2008

Centrifugal Pump Housing

Oil Drilling Pumps Parts.

Material: Ductile Cast Iron

Process: Sand Casting,then CNC Machining

Hydro-test be made for each piece before packing.

Painting and epoxy can be made

Dimensions and tolerances per ANSI Y14.5-82

We make many parts for pumps, these parts include Pump Housing/Casing, Pump Frame, Bearing Housing, Bearing Cover, Impeller, Flange, Stuffing Box Cover/Feat, Wear Plate,Shaft etc.

Casing 2X3R11 1.1CP(Centrifugal Pump)

Casing1 1/2X2R11 1.1CP

Casing1X1-1/2C11 1.1CP

Casing4X5RX12 1.8CP

Casing5X6RX12 1.8CP

Casing 3X4RX13 1.8CP

Casing 2X3RX13 1.8CP

Casing 6x8RX13 1.8CP

Casing 6X5X14 2.5CP

Casing 3X2X13 2.5CP

Casing 4X3X13 2.5CP

Casing 5X4X14 2.5CP

Casing 6X5X11 2.5CP

Casing 8X6X11 2.5CP

Casing 8X6X14 2.5CP

Frame for 1.1CP/1.8CP/2.5CP/1-1/8CP

Wear Pad, casing, 5X4X14, 2.5 Centrifugal Pump

Wear Plate, stuffing box cover-packed 1.8 Centrifugal Pump

Impeller 5X6RX12 1.8 Centrifugal Pump

Housing, outboard bearing, 2.5 Centrifugal Pump

Cover, outboard bearing, 2.5 Centrifugal Pump

Stand, motor 2.5Vertical Centrifugal Pump

Adapter, flange-special 2.5 Vertical Centrifugal Pump

Shaft, 2500DIA Centrifugal Pump
