Pressure Torque Control Single Axial Hydraulic Piston Pump For Truck , Loader

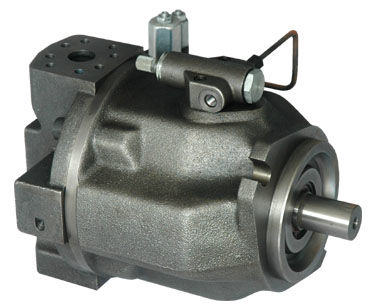

Large Image : Pressure Torque Control Single Axial Hydraulic Piston Pump For Truck , Loader

Product Details:

Place of Origin:	China
Brand Name:	Hengyuan Hydraulic
Certification:	ISO9000
Model Number:	HY80Y-RP, HY160Y-RP, HY250Y-RP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Highlight:	single piston pump

Pressure Torque Control Single Axial Hydraulic Piston Pump For Truck , Loader

Quick details

Hydraulic Piston Pumps

displacement is 100cc

Pressure, Flow, torque control

Side port type, single pump

Torque Control Hydraulic Piston Pumps

Axial piston pump, displacement is 100cc.

Pressure, Flow, torque control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Side port type, single pump

Applications:

Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system. Excavator, Loader

Advantage:

Good quality, Competitive price and quick delivery.

Low noise, SmallVolume

Specifications:

Specifications				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60

Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
