Rotation Variable Displacement Hydraulic High Pressure Pump , Splined Shaft

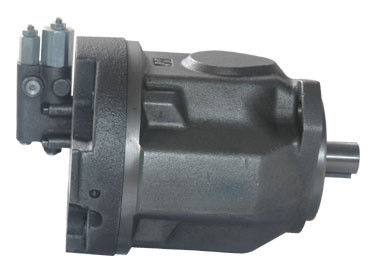

Large Image : Rotation Variable Displacement Hydraulic High Pressure Pump , Splined Shaft

Product Details:

Place of Origin:	China
Brand Name:	Hengyuan Hydraulic
Certification:	ISO9000
Model Number:	A10VSO18/28/45/71/100/140

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Highlight:	variable piston pump

Rotation Variable Displacement Hydraulic High Pressure Pump , Splined Shaft

Quick details

Variable Displacement High Pressure Hydraulic Pumps

71cc/100cc displacement

Clockwise Rotation

Splined shaft

Low noise, Small Volume

Features
1. Low noise level, high efficiency, high reliability and long service life.
2. Small volume, High power density.
3. Excellent oil absorbency.
4. Axial and radial loading of drive shaft possible.
5. SAE and ISO mounting flange.
6. Thru drive option for multi- circuit system.

Applications:

Hydraulic system. Ship Hydraulic system.

Specifications:

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60
