variable piston pump

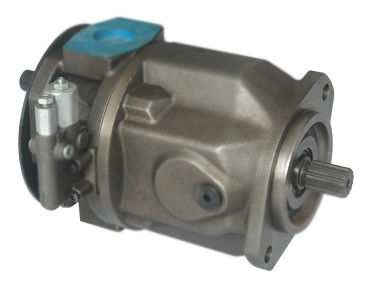

Small SAE 2 Hole High Pressure Hydraulic Pumps UNC Inch Thread


Quick details
Clockwise Rotation High Pressure Hydraulic Pumps
displacement 45cc/71cc
Perbunan seal
SAE 2 hole UNC inch thread
Low noise, Small Volume

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump

Specifications:


Applications:
Hydraulic system. Ship Hydraulic system.
suitable for hydraulic power transmission in Metal Forming Machine Tool, Construction
Machinery, PlasticMachinery and the field in Mining, Metallurgy, Shipbuilding,
Architectural machine,Water Product andConservancy so on.

Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.


Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
