Group 3.0 Low noise High Pressure Hydraulic Pump for Construction with spline shaft

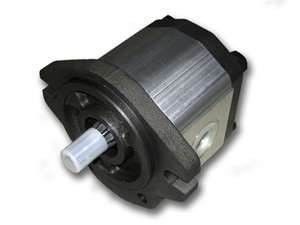

Large Image : Group 3.0 Low noise High Pressure Hydraulic Pump for Construction with spline shaft

Product Details:

Place of Origin:	China
Brand Name:	TKEN
Model Number:	BHP3B0
Theory:	Rotary Pump
Structure:	Gear Pump
Usage:	Oil
Power:	Hydraulic
Standard or Nonstandard:	Standard
Fuel:	oil
Pressure:	High Pressure
Application:	construction machinery,hydraulic system
Series:	Group 30, 3 PE, G Serious
Displacement:	20~71ml/r
Max.pressure(continuous):	250bar
Weight:	8.1~9.3Kg
Material:	Extruded alluminum body,die cast alluminum cover or cast-iron cover
Front cover:	4-bolt rectangular flange,2-bolt SAE Flange
Shaft:	Tappered key shaft,Straight key shaft,spline shaft
Ports:	BSP,Metric,NPT,UNF,Flange Metric thread,Flange UNC Thread
Shaft seal:	V(-10℃~120℃),H(-40℃~80℃),T(3~6bar),N(3~10bar)
Valve(option):	Pressure Relieve Valve,Flow Control Valve

Contact Now

Detailed Product Description

Highlight:	high pressure hydraulic pump

Group 3.0 Low noise High Pressure Hydraulic Pump for Construction with spline shaft

Hydraulic gear pump
1.High efficiency and long life
2.Strength,High pressure
3.Low noise
4.Displacement: 20~71cc

Hydraullic gear pump BAP3.0/BHP3.0(Group 3.0) 20~71ml/r

    1.Boden pumps and motors are high volumetic efficiency and long life achieved by smart design and accurate control of machining tolerances
    2.Fine finished steel gears,Hi-resistant Extruded alluminum body, Hi-resistant Die cast alluminum cover(BAP3) or cast-iron cover(BHP3), Low-friction die casting alluminum bushes,and DU slide bearing,all these keep low pulsation,low noise and long life.
    3.Full option of shafts,flanges and ports as for European,German and America standards
    4.Nitrile seals as standard and viton seals available for high temperature application,high pressure shaft seals are also available.
    5.Motor and bi-direction pump available
    6.Available as multiple pump either of the same or different group
    7.We test 100% of the pumps and motors after assambling to ensure the high standard performance.
    8.Our team have worked in hydraulics for about 20 years. Our technical people are very skilled in producing gear pump.
    9.We have supplied to many world-famous company all over the world.

Mounting information and diamension for BHP3B0 hydraulic gear pump

Technical information BHP3 hydraulic gear pump

Type	Displacement	Max.pressure			Max.speed	Min.speed
Type	Displacement	P1	P2	P3	Max.speed	Min.speed
	cm3/rev	bar	bar	bar	r/min	r/min
BHP3	20	250	265	280	3500	600
BHP3	22	250	265	280	3500	600
BHP3	26	250	265	280	3000	600
BHP3	33	230	250	270	3000	500
BHP3	39	230	250	270	3000	500
BHP3	46	230	250	270	3000	500
BHP3	50	220	240	260	3000	500
BHP3	52	220	240	260	3000	500
BHP3	55	200	230	250	2800	400
BHP3	63	200	230	250	2800	400
BHP3	71	180	200	220	2500	400
